High Quality Beverage Drink Bottle Filling Machine
Complete automatic line for all products
We offers complete solutions that integrate the three essential stages in packaging your products: filling, capping and labelling.
To meet your needs as closely as possible, we can integrate complementary solutions into this complete 3-in-1 line. These solutions can include infeed/outfeed tables, marking/coding systems, conveyors and any other element required for packaging your products.
This Automatic Beverage filling machine is specially made for all high and low viscosity materials, such as juice, drink,non-sparkling beverages ,oil, milk, etc. The machine adopts volumetric piston pump for filling materials. Controlled by servo motor . adjusting the filling weight by touch screen, it can fill from 10ml-1000ml with quick speed and high precision.
Discover all our complete lines on our Youtube channel.
● Speed of up to 100 BPM
● Automatic level filling nozzles
● Quick changeovers
● Safety Guarding System
● Integrated Product Recirculation
- This machine adopts PLC, touch screen control panel, weighing instrument to adjust and control, it is convenient to adjust.
- Each filling head has the weigh and feedback system, each filling head can be regulated and micro adjusted.
- Photoelectric sensors, proximity switches, etc. are used in advanced sensing elements, so that no bucket, no filling, if barrel blocking, the machine will automatically stop and alarm.
- If filled material is very foamy, the filling way can be diving style, and it is effectively reduce the generation of foam, can meet the different characteristics of the filling material.
- The whole machine gets GMP standard. It is easy to disassemble clean and maintain, and the parts which contact with the filling products are made of high quality stainless steel 316, the machine frame is made of SS304, the thinkness of stainless steel is not less than 2mm.
- The whole machine is safe, environmental, sanitary. It can adapt to various kinds of working places.
Filling accuracy expectation of
± 2% (for 100 ml to 500 ml fill volume)
± 1% (for 50ml to 150 ml fill volume)
± 0.5% (over 150 ml fill volume)

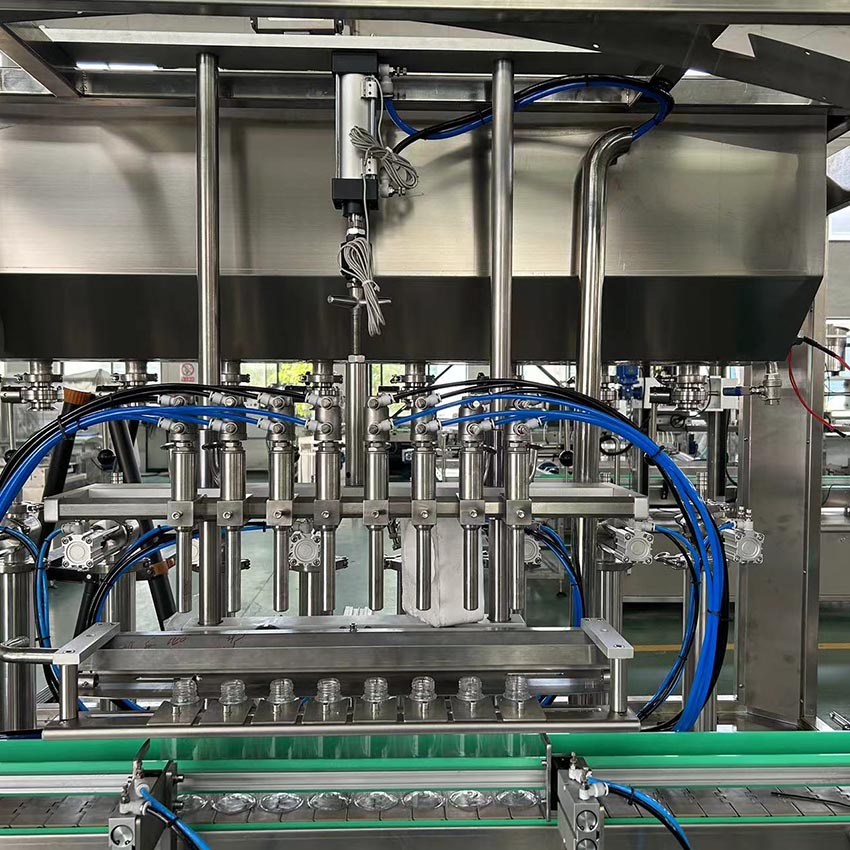

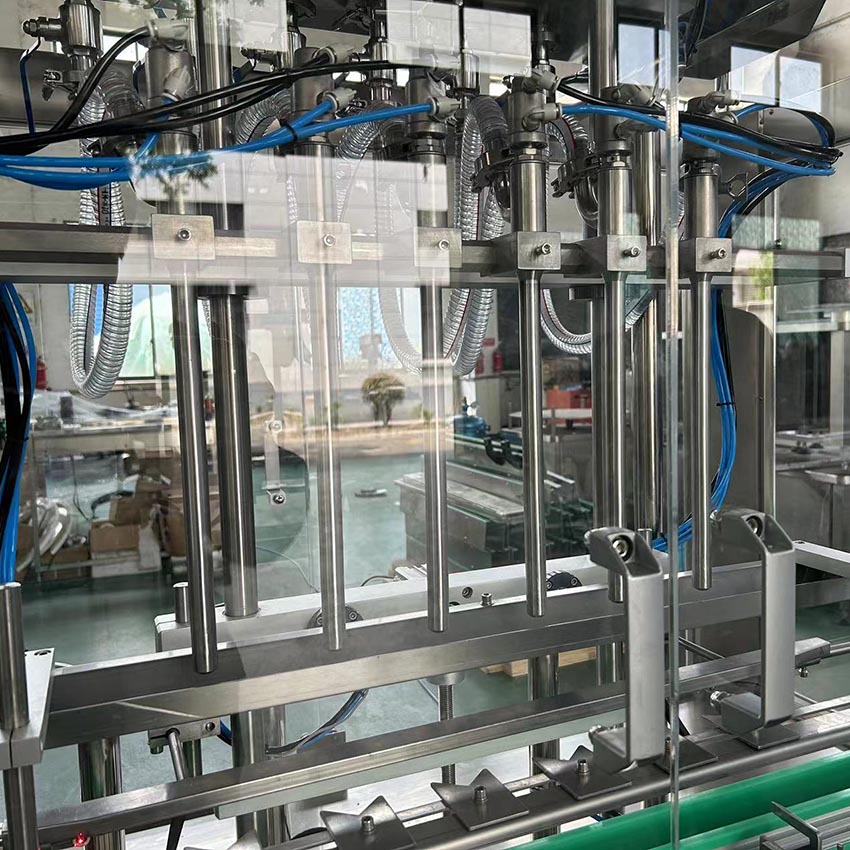

Filling Nozzle
• Stainless steel 316L
• Spring loaded ball check valve
• With re-enforce silicon hoses (food Grade) for product transfer
• Custom attachment system for BottlingLife equipment
• Final design adapted to the product to be fill (To Be Confirm)
Filling Nozzle with Shut Off System
Preventing dripping with viscous & semi viscous products
• Stainless steel 316L
• Pneumatic activated plunger for sealing the nozzle
• Quick disconnect air hose system for wash down
• Dismantling of the nozzle with the usage of any tools
• With re-enforce silicon hoses (food Grade) for product transfer

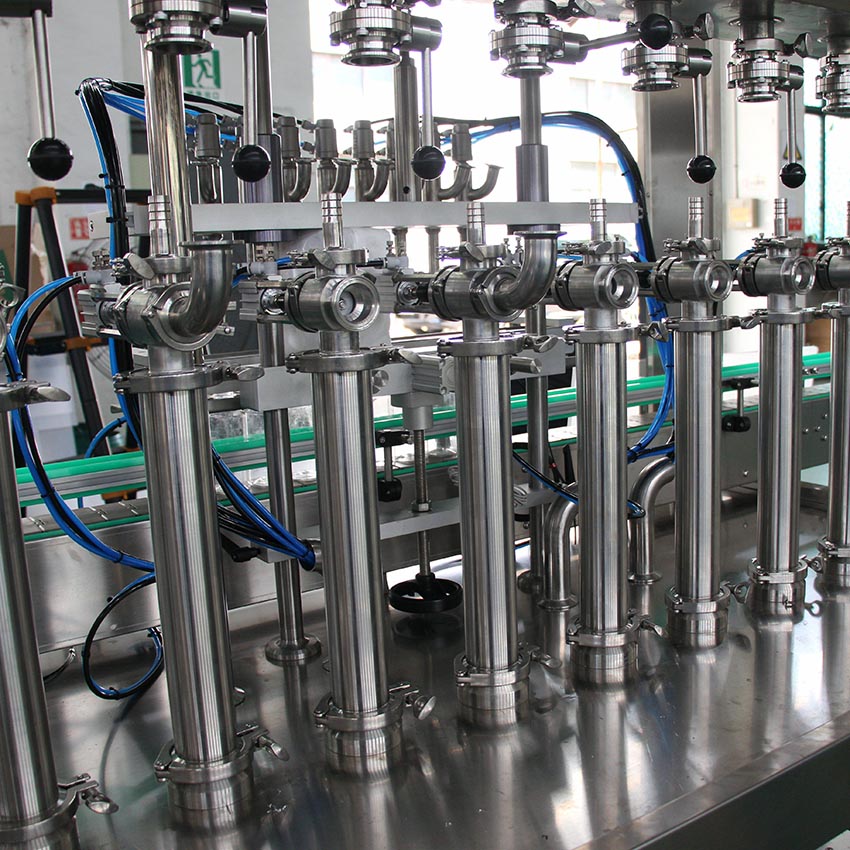

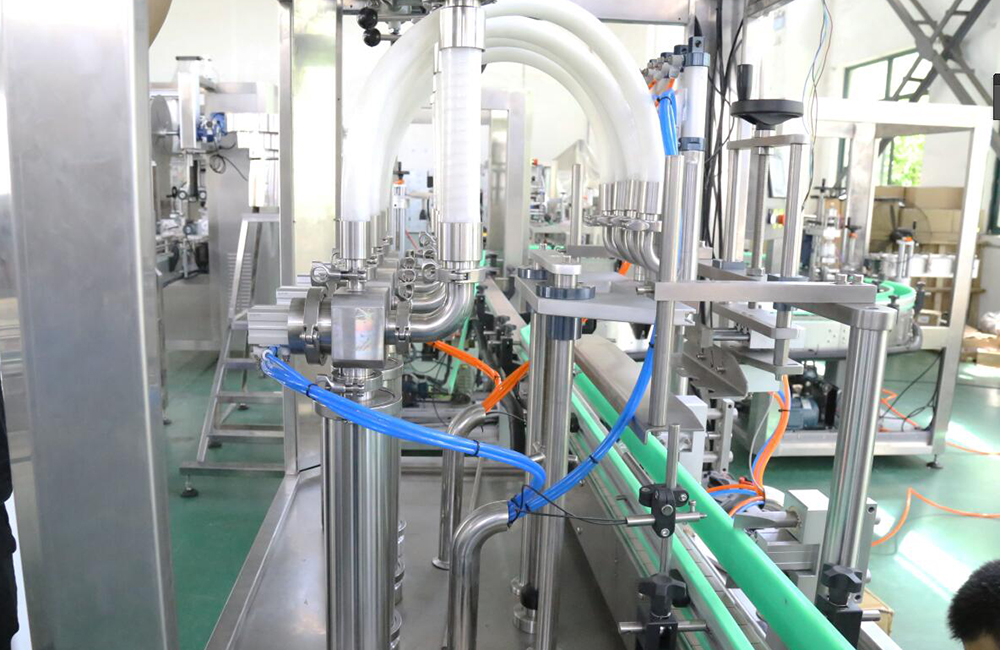

Volumetric Piston for Viscous Products
• Ball check valve in stainless steel 316L
• Stainless steel 316L Volumetric chamber
• Pistons with autoclavable packing, FDA approved material
• “Tri Clamp” Attachment system
• Infeed Ø out feed Ø
• Dismantling of the complete piston without tool
• Servo motor control
• Adjustable support legs for in-line positioning and levelling. with ± 38 mm (1 ½ ‘’) adjustment capability
• Raised working surface for easy cleaning
• Machine as multiple brushless motors for a smooth and flexible machine operation
• Electrical and mechanical part located inside the machine frame for a complete protection
• Top plate of the base completely sealed against liquid infiltration protecting all internal mechanical parts
Control System
• Stainless steel panel control
• Stainless steel, tubular holding post with Twin axis swivel panel control
• Emergency Stop on the control panel
• Machine controlled with industrial PLC
• (7’’) multi-color touch screen control• HMI resolution
• Programmable feeder, conveyor speed, etc.
• For normal machine operation with alarm display
• Possibility to have different language interfaces
1.Where is it located the manufacturer?
We are located in shanghai china
2.How long is the warranty?
The warranty is one year with easy damage part for free
3.How long it would take to deliver if I decided to purchase?
Because all of our machine will be customized according to your bottles .so the production time is about 30-40 days after get your bottle samples and deposit .?
4.How is the cost of power per day of the machine?
the machine power need about2kw-5kw
5.In case of breakdown the parts are it easily findable and deliver quickly?
Yes.we will provide you one years warranty with any easy damage spare part for free with free shipping .
6.What resources does your company offer in terms of set up and additional support?
Our engineer is avaliable to set up machine and provide technical support for you.beside this .we provide manual book and video support
7.Can i send bottle and cap test ?how much would you need ?can you make a video of this ?
our machine is customized according to the bottle size and cap size .
when machine is ready we will send you test video with your bottle and caps .bottle we need about 100 for each size .cap we need 200 for each size
8.WHAT ABOUT SPARE PARTS?
We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.
9.HOW DO I TEST THE MACHINE BEFORE SHIPMENT?
We will run the machine for 48 hours .and send you the test video .we can also have remote FAT
10.Do you have certificates?
Yes.we have been certified .we can also provide IQ OQ documentation.
