Automatic Fix Position Labeling Machine
This automatic linear adhesive labelling machine can apply up to four labels (label, back label, medal, neck label) on Champagne bottles, sparkling wines and also allows the crimping of foils.
An intuitive touch screen makes it easy to make settings.
This labeling machine is designed to apply a partial or full wrap-around label to round bottles. This is done using a motorized wrap-around system that electronically synchronizes the speed of the labeling head with the speed of the container.
This System can be equipped with a choice of labeling heads with different sized wrap-around systems in conjunction with various indexing systems to suit your speed and application requirements. Indexing systems options include a feedscrew, an indexing wheel, and a double belt bottle separator.
For a comprehensive understanding of our labeling machine ,we invite you to explore our YouTube channel.
- Speed Up to of 40 bpm
- Adopt mature PLC control system technology; make the whole machine stable and high-speed
- Use touch screen control system, make operation simple, practical and efficient

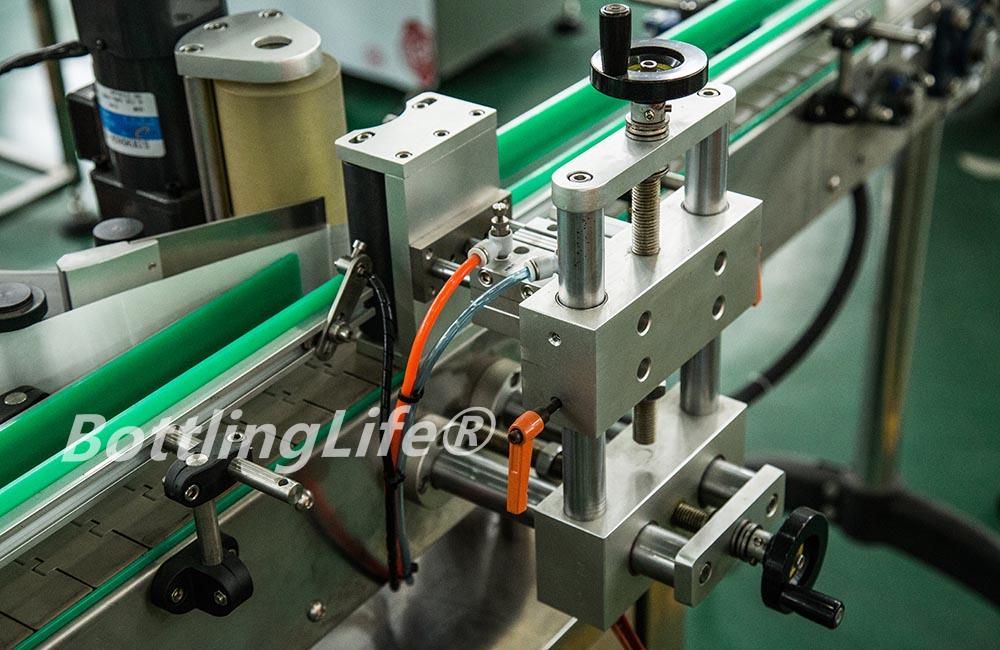

- Screw adjust the suppression mechanism, high accuracy
- Synchronization chain mechanism, to ensure smooth and precise calibration
- Transparent sticker labeling without foam, adhesive sticker labeling without wrinkle
- Work for all round shape bottle
- Hot stamp printer is for optional
• One electronic labeling head
• Height: minimum and maximum backing paper 20 x
100 mm (Labels 8 x 98 mm)
• Length: minimum and maximum 8 x 250 mm
• Minimum gap between labels 2 mm
• Maximum roll size 380 mm (15’’)
• Core size: from 40 to 75 mm
• Maximum dispensing speed of 40 bottle per
minute
• High precision Stepper motor
• System pull push for label stability
• Bottle detection with photo start programmable directly
from the touch screen control
• Label detection with standard photo stop detection
mounted on a sliding arm
• Height adjustment system of the labeling head with
hand wheel for easy change over
• Change over label with automatic self-learning device
"L” Shape Arm for Vision / Coding System Installation
To integrated a Hot stamp, thermal transfer coder, or vision system onto the
labeling head directly, giving you more space to do the equipment adjustmen

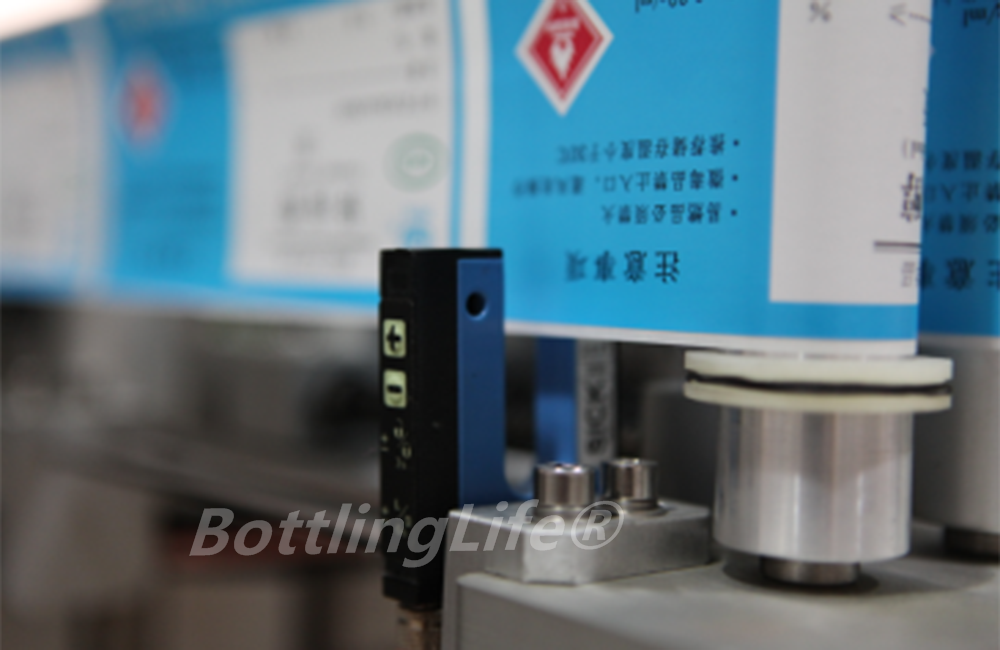

Leuze Eye Sensor
Sensor able to detect every style of label onto backing paper with minimum adjustment
|
Voltage |
220V, 50HZ |
|
Power |
2KW |
|
Air pressure |
0.3Mpa |
|
Labeling Speed |
30-100pcs/min |
|
Labeling Accuracy |
±1mm |
|
Object Size |
30-200 mm(H),30-100 mm(W) |
|
Label Size |
25-300 mm(L),20-180 mm(W) |
|
Roll Size |
76 mm(Inside),380 mm(Outside) |
|
Dimension |
2800(L)×1600(W)×1500(H) mm |
1.Where is it located the manufacturer?
We are located in shanghai china
2.How long is the warranty?
The warranty is one year with easy damage part for free
3.How long it would take to deliver if I decided to purchase?
Because all of our machine will be customized according to your bottles .so the production time is about 30-40 days after get your bottle samples and deposit .?
4.How is the cost of power per day of the machine?
the machine power need about2kw-5kw
5.In case of breakdown the parts are it easily findable and deliver quickly?
Yes.we will provide you one years warranty with any easy damage spare part for free with free shipping .
6.What resources does your company offer in terms of set up and additional support?
Our engineer is avaliable to set up machine and provide technical support for you.beside this .we provide manual book and video support
7.Can i send bottle and cap test ?how much would you need ?can you make a video of this ?
our machine is customized according to the bottle size and cap size .
when machine is ready we will send you test video with your bottle and caps .bottle we need about 100 for each size .cap we need 200 for each size
8.WHAT ABOUT SPARE PARTS?
We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.
9.HOW DO I TEST THE MACHINE BEFORE SHIPMENT?
We will run the machine for 48 hours .and send you the test video .we can also have remote FAT
10.Do you have certificates?
Yes.we have been certified .we can also provide IQ OQ documentation.
