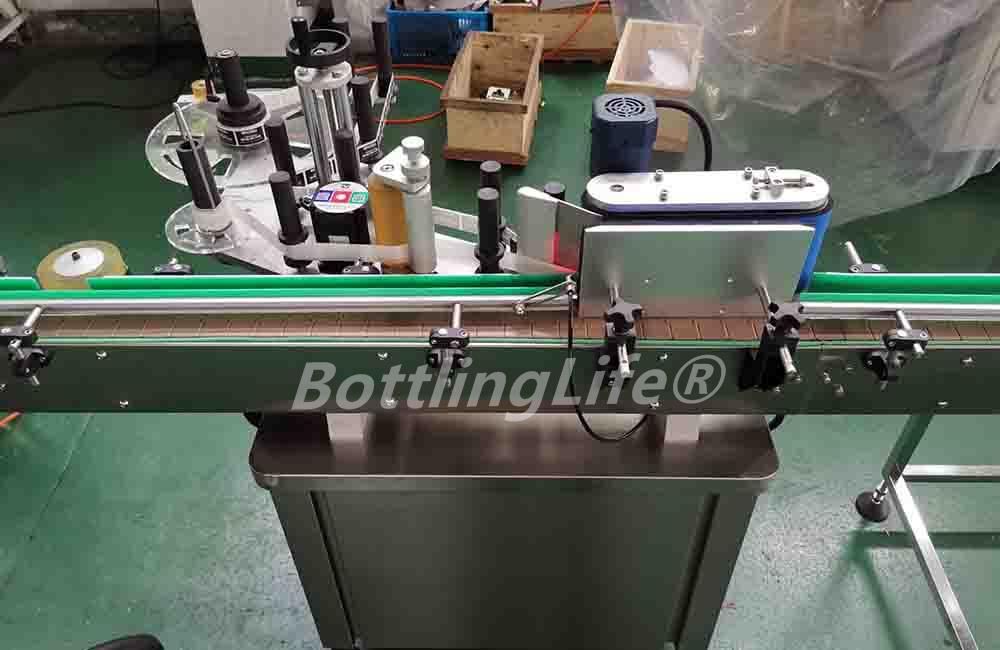

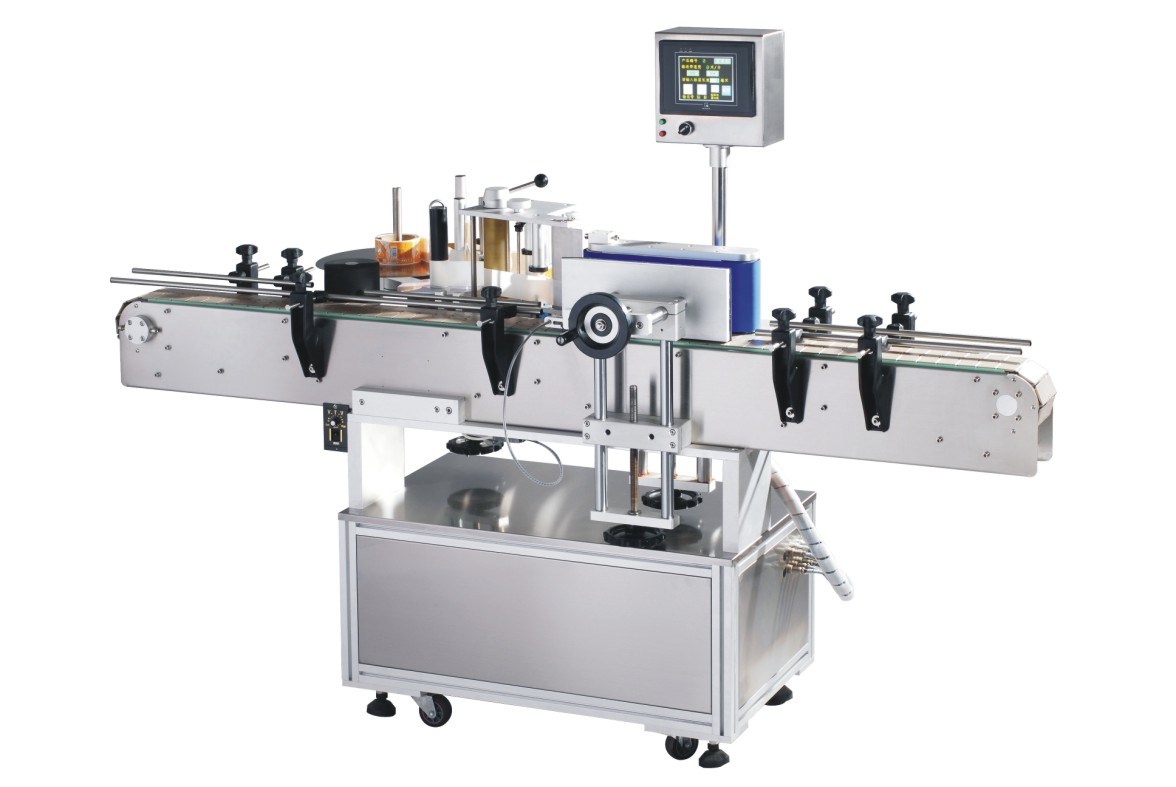

Automatic Round Bottle Labeling Machine
This labeling machine is designed to apply a partial or full wrap-around label to round bottles. This is done using a motorized wrap-around system that electronically synchronizes the speed of the labeling head with the speed of the container.
This System can be equipped with a choice of labeling heads with different sized wrap-around systems in conjunction with various indexing systems to suit your speed and application requirements. Indexing systems options include a feedscrew, an indexing wheel, and a double belt bottle separator.
Speed Up to of 60 bpm
Adopt mature PLC control system technology; make the whole machine stable and high-speed
Use touch screen control system, make operation simple, practical and efficient
Screw adjust the suppression mechanism, high accuracy
Synchronization chain mechanism, to ensure smooth and precise calibration
Transparent sticker labeling without foam, adhesive sticker labeling without wrinkle
Work for all round shape bottle
Hot stampprinter is for optional
|
Voltage |
220V, 50HZ |
|
Power |
2KW |
|
Air pressure |
0.3Mpa |
|
Labeling Speed |
30-100pcs/min |
|
Labeling Accuracy |
±1mm |
|
Object Size |
30-200 mm(H),30-100 mm(W) |
|
Label Size |
25-300 mm(L),20-180 mm(W) |
|
Roll Size |
76 mm(Inside),380 mm(Outside) |
|
Dimension |
2800(L)×1600(W)×1500(H) mm |

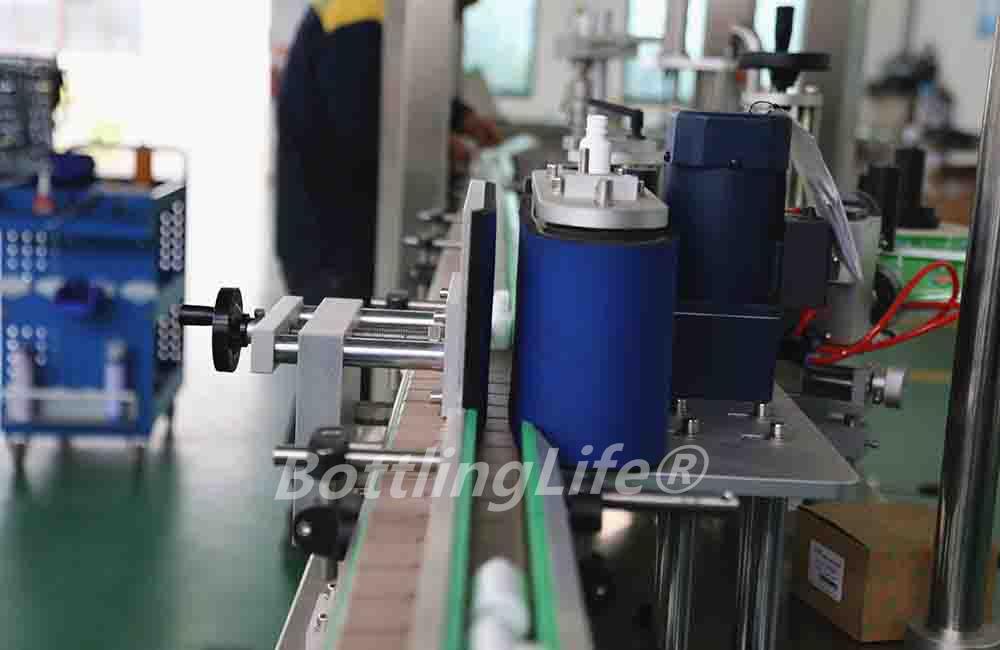

• One electronic labeling head
• Height: minimum and maximum backing paper 20 x
100 mm (Labels 8 x 98 mm)
• Length: minimum and maximum 8 x 250 mm
• Minimum gap between labels 2 mm
• Maximum roll size 380 mm (15’’)
• Core size: from 40 to 75 mm
• Maximum dispensing speed of 40 bottle per
minute
• High precision Stepper motor
• System pull push for label stability
• Bottle detection with photo start programmable directly
from the touch screen control
• Label detection with standard photo stop detection
mounted on a sliding arm
• Height adjustment system of the labeling head with
hand wheel for easy change over
• Change over label with automatic self-learning device
"L” Shape Arm for Vision / Coding System Installation
To integrated a Hot stamp, thermal transfer coder, or vision system onto the
labeling head directly, giving you more space to do the equipment adjustmen
Leuze Eye Sensor
Sensor able to detect every style of label onto backing paper with minimum adjustment
We offer you a 1 year warranty on our high-quality machines and lifetime technical support
We will run the machine for 48 hours .and send you the test video .we can also have remote FAT
Because machine is customized .so it would take 30-40days after receving samples and deposit. Shipping time depends on your destination port.
Our engineer is avaliable to set up machine and provide technical support for you.beside this .we provide manual book and video support.
We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.
Yes.that's no problem .
