Automatic Eyedropper Filling Plugging Screw Capping Machine

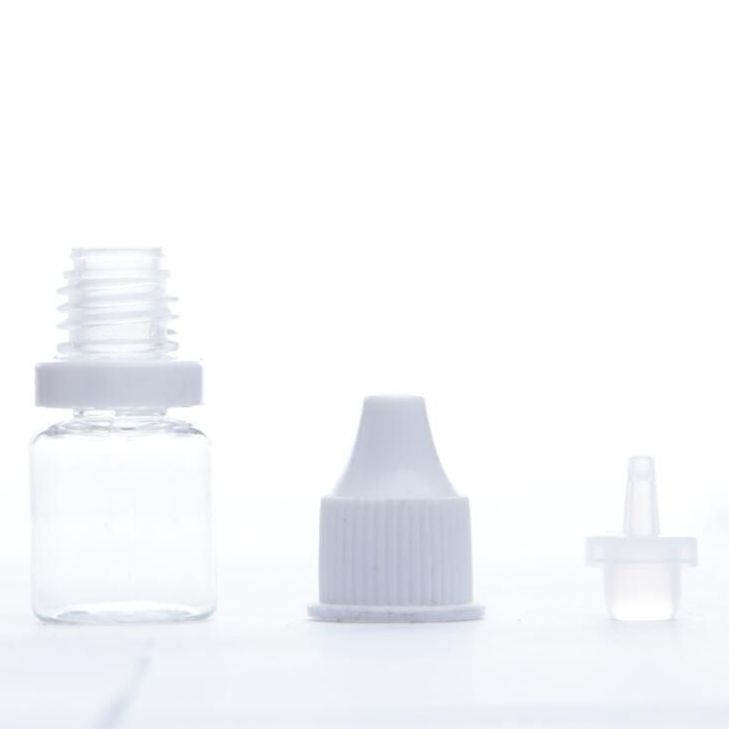

This model has the particularity of filling, screwing and labelling vials with a Eyedropper cap (such as Tincture oil, serums in the cosmetic sector…).

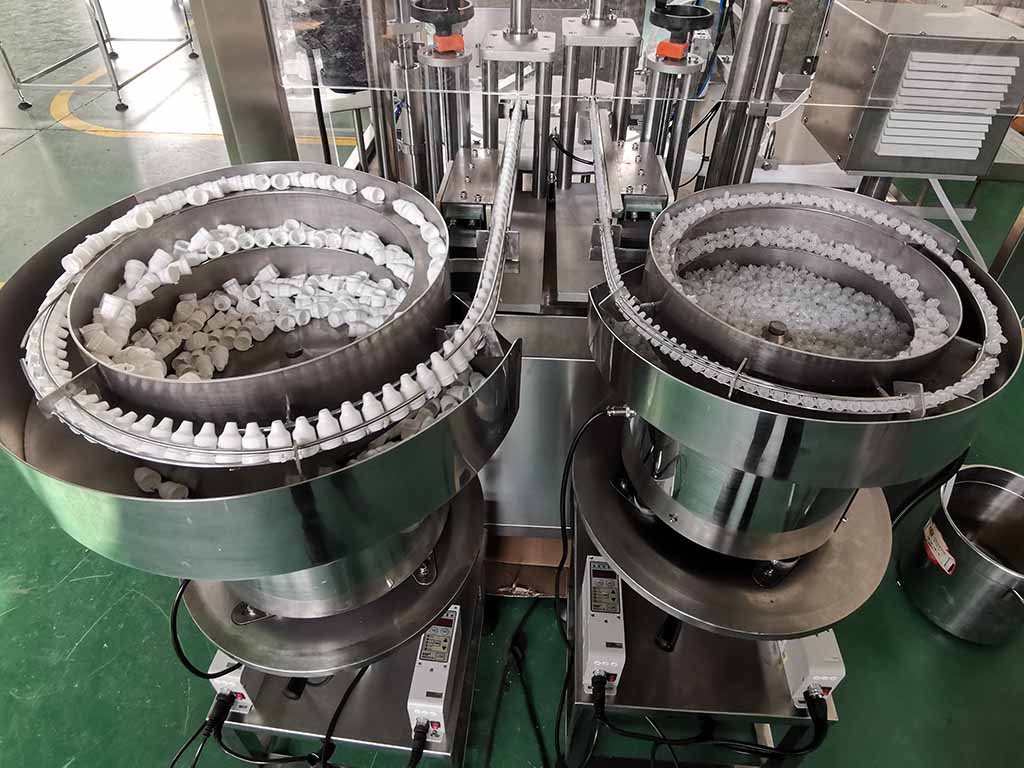

This Dropper is equipped with an external vibrating bowl to automatically straighten the caps. A vibrating ramp allows the caps to be conveyed inside the machine. For added safety, a clamp has been added to guide the glass dropper into the container to avoid breaking it.
The output of this machine reaches up to50 products per minute for 10 ml formats (i.e. 3000 bottles per hour).
Its peristaltic pump system allows a liquid change in less than 2 minutes without cleaning the pump. it can also be equipped with a volumetric pump by flow meter or piston depending on the viscosity of the product to be filled.
This model is designed to automate the process of filling, screwing, and labeling vials with an Eyedropper cap. It eliminates the need for manual labor, saving time and increasing efficiency in production.
The filling mechanism ensures accurate dispensing of liquid into each vial, preventing overfilling or underfilling. It can handle a wide range of viscosities, allowing for the filling of different types of liquids.
The screwing mechanism securely attaches the Eyedropper cap onto the filled vials, ensuring a tight seal. This prevents any leakage or contamination of the liquid stored in the vials.
Once the vials are filled and capped, the labeling system applies labels to each vial. The labels can contain important information such as product name, dosage instructions, and batch numbers.
This model is equipped with sensors and controls to monitor and regulate the entire process. It can detect any abnormalities or errors and automatically stop or alert operators for intervention.
Overall, this model provides a highly efficient and reliable solution for filling, screwing, and labeling vials with Eyedropper caps, making it ideal for pharmaceutical, cosmetic, and other industries where precision and accuracy are essential.
For a comprehensive understanding of our essential oil filling machine and the diverse range of semi-automatic and automatic machines we offer, we invite you to explore our YouTube channel.
- ISO5 room capability
- Peristaltic pump filling
- Speed up to 60-100 bpm
- Can fill 2 ml
- Saving Space
- Meets FDA requirements and follows cGMP guidelines
- Includes an automatic bottle feeding and accumulation system
- High-accuracy filling station Diving nozzles for an optimized filling cycle
- Positive pick and place plugging station
- Positive pick and place cap placement and/or pre-tightening station
- Independent final cap torquing/crimping station with torque control
- One-person operation
- Quick, repeatable changeovers
Filling accuracy expectation of
± 2% (for 0.5 ml to 5 ml fill volume)
± 1% (for 5ml to 15 ml fill volume)
± 0.5% (over 15 ml fill volume)

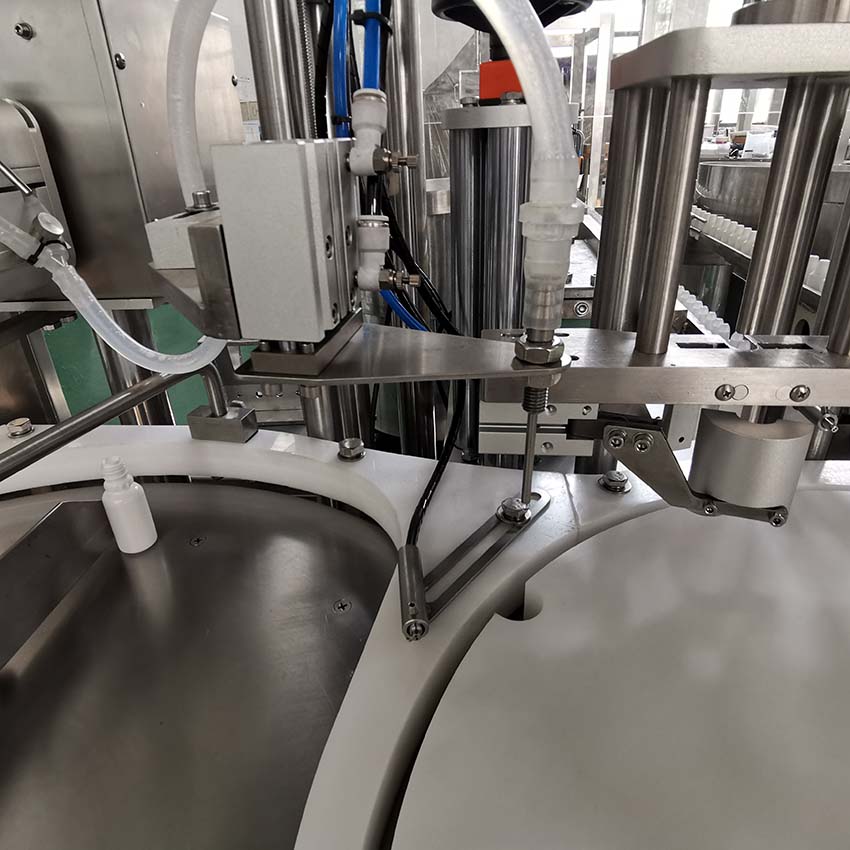

Filling Nozzle
• Stainless steel 316L
• Spring loaded ball check valve
• With re-enforce silicon hoses (food Grade) for product transfer
• Custom attachment system for BottlingLife equipment
• Final design adapted to the product to be fill (To Be Confirm)
Filling Nozzle with Shut Off System
Preventing dripping with viscous & semi viscous products
• Stainless steel 316L
• Pneumatic activated plunger for sealing the nozzle
• Quick disconnect air hose system for wash down
• Dismantling of the nozzle with the usage of any tools
• With re-enforce silicon hoses (food Grade) for product transfer

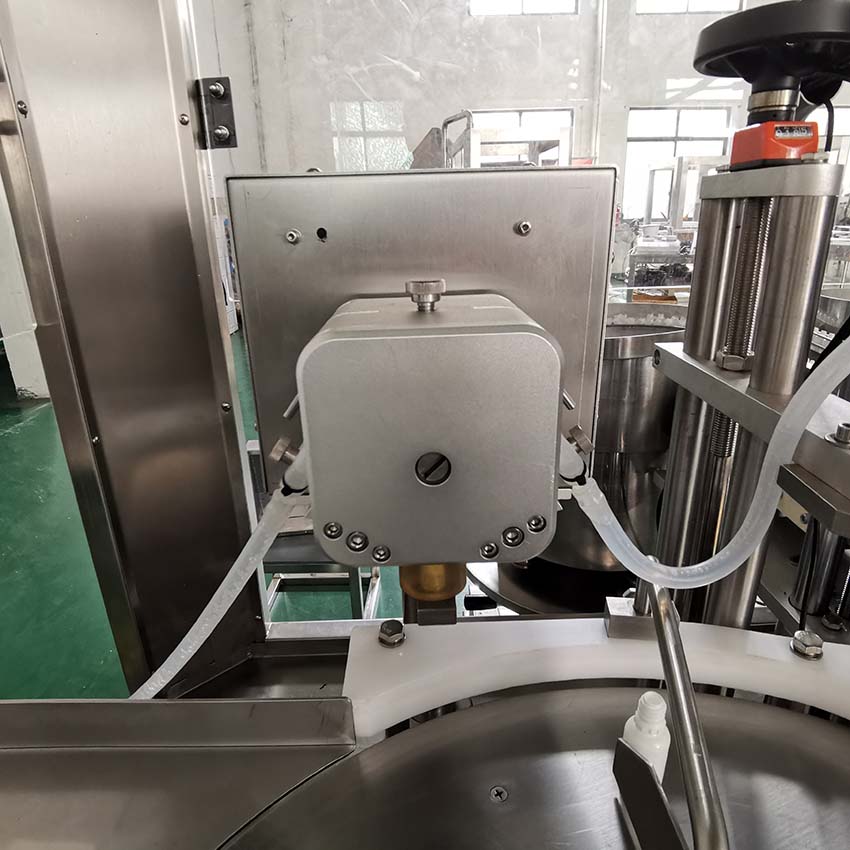

Peristaltic Pump for Liquid Products
• Ball check valve in stainless steel 316L
• Stainless steel 316L Filling Nozzel
• Pistons with autoclavable packing, FDA approved material
• “Tri Clamp” Attachment system
• Infeed Ø out feed Ø
• Dismantling of the complete piston without tool
• Servo motor control
| Description | Automatic Eyedropper Filling Plugging Screw Capping Machine |
| Filling nozzles | custimize |
| Capping Head | customize |
| Filling capacity | 5ml-100ml |
| Filling speed | 60bpm |
| Dimention | 2000mmx1340mmx2100mm |
1.Where is it located the manufacturer?
We are located in shanghai china
2.How long is the warranty?
The warranty is one year with easy damage part for free
3.How long it would take to deliver if I decided to purchase?
Because all of our machine will be customized according to your bottles .so the production time is about 30-40 days after get your bottle samples and deposit .?
4.How is the cost of power per day of the machine?
the machine power need about2kw-5kw
5.In case of breakdown the parts are it easily findable and deliver quickly?
Yes.we will provide you one years warranty with any easy damage spare part for free with free shipping .
6.What resources does your company offer in terms of set up and additional support?
Our engineer is avaliable to set up machine and provide technical support for you.beside this .we provide manual book and video support
7.Can i send bottle and cap test ?how much would you need ?can you make a video of this ?
our machine is customized according to the bottle size and cap size .
when machine is ready we will send you test video with your bottle and caps .bottle we need about 100 for each size .cap we need 200 for each size
8.WHAT ABOUT SPARE PARTS?
We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.
9.HOW DO I TEST THE MACHINE BEFORE SHIPMENT?
We will run the machine for 48 hours .and send you the test video .we can also have remote FAT
10.Do you have certificates?
Yes.we have been certified .we can also provide IQ OQ documentation.
