The machine is designed to accurately fill and cap nail polish bottles, ensuring a consistent and efficient production process.

The nail polish filling capping machine is equipped with advanced technology that allows for precise filling of the nail polish formula into each bottle. It has a high-speed filling capability, enabling a fast production rate that saves time and increases productivity.

Additionally, the machine reduces labor costs as it performs the filling and capping tasks automatically. This eliminates the need for manual labor and minimizes human error, resulting in a more reliable and consistent production output.

Furthermore, the installation and operation of the machine are user-friendly and straightforward. It comes with an easy-to-follow instruction manual and requires minimal technical expertise. This means that even individuals with limited experience can efficiently set up and operate the machine.

Overall, the nail polish filling capping machine offers numerous benefits for cosmetic product manufacturers. Its fast filling speed, labor-saving features, and easy installation make it a popular choice in the industry.

For a comprehensive understanding of our nail polish  filling machine and the diverse range of semi-automatic and automatic machines we offer, we invite you to explore our YouTube channel.

Can fill up to 100 ml

Meets FDA requirements and follows cGMP guidelines

rotary filling design

Piston Pump Filling

Ex-proof

High-accuracy multi-head filling station

Diving nozzles for optimized filling cycle

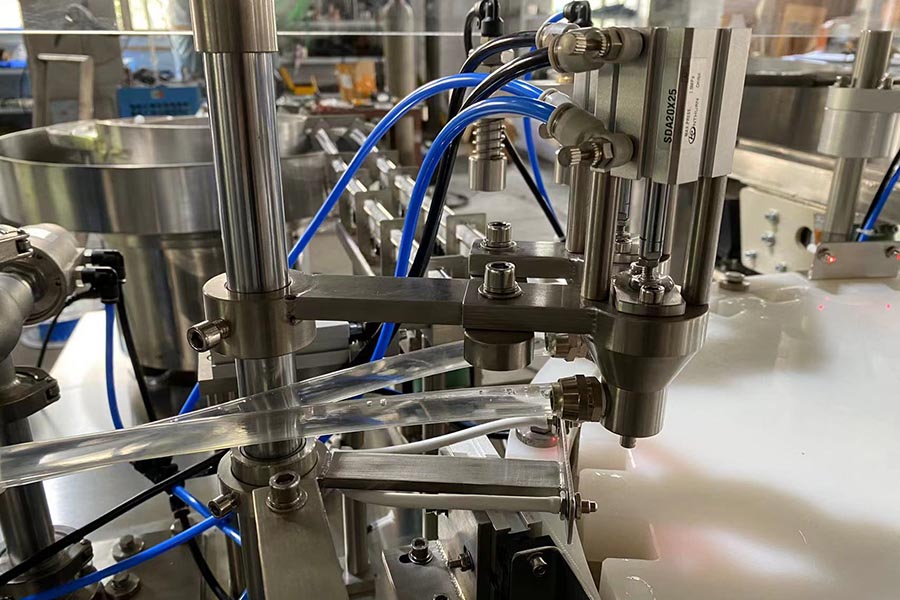

Positive pick and place plugging station

Independent final cap torquing/crimping station

Filling accuracy expectation of

± 2% (for 0.5 ml to 5 ml fill volume)

± 1% (for 5ml to 15 ml fill volume)

± 0.5% (over 15 ml fill volume)

Filling Nozzle

• Stainless steel 316L

• Spring loaded ball check valve

• With re-enforce silicon hoses (food Grade) for product transfer

• Custom attachment system for BottlingLife equipment

• Final design adapted to the product to be fill (To Be Confirm)

Filling Nozzle with Shut Off System

Preventing dripping with viscous & semi viscous products

• Stainless steel 316L

• Pneumatic activated plunger for sealing the nozzle

• Quick disconnect air hose system for wash down

• Dismantling of the nozzle with the usage of any tools

• With re-enforce silicon hoses (food Grade) for product transfer

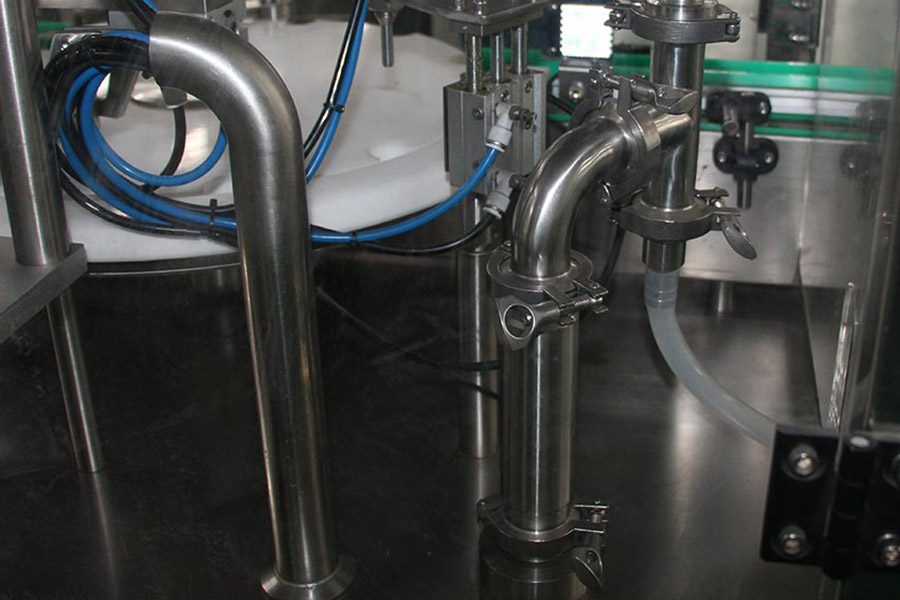

Volumetric Piston for Liquid Products

• Ball check valve in stainless steel 316L

• Stainless steel 316L Volumetric chamber

• Pistons with autoclavable packing, FDA approved material

• “Tri Clamp” Attachment system

• Infeed Ø out feed Ø

• Dismantling of the complete piston without tool

• Servo motor control

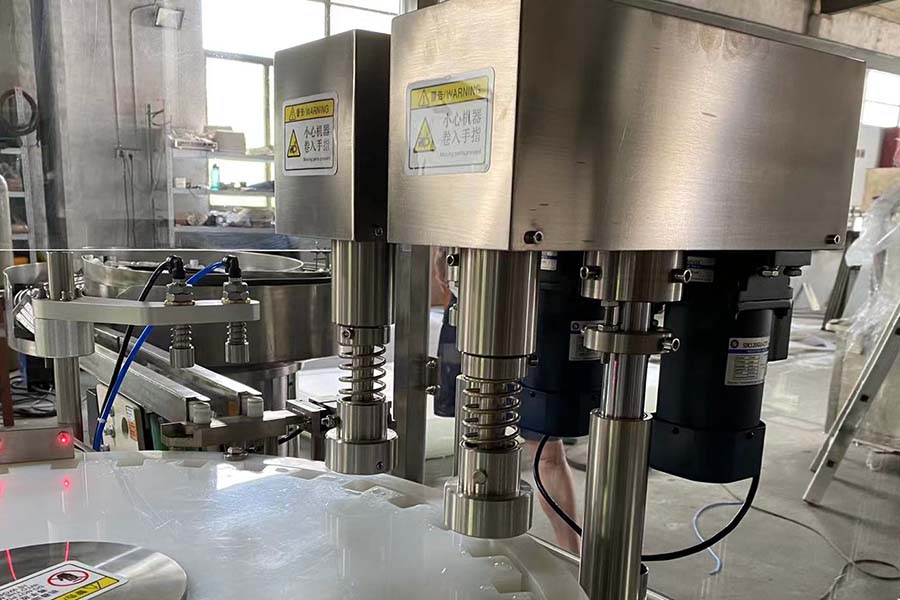

Capping Station (Screw Caps)

One (X 1) transfer star wheel for Capping station

Tube Alignment with ‘’Funnel’’ Device to properly introduce the pipette into the bottle

One (X 1) final independent Magnetic torque control

Torque accuracy 0.2 Nm (± 2 in.-lb.) across a range of 0.56 to 22.4 Nm (5 – 100 in.-lb.)

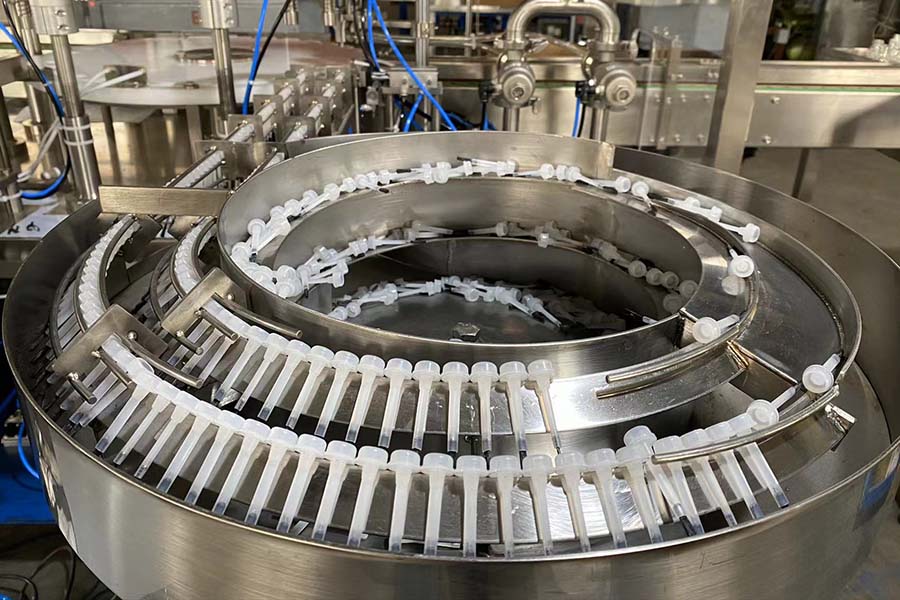

Vibrator Bowl Sorting

• Operator level unscrambling system sitting on an anodize stain less frame

completely cover stainless steel base with stabilizer foot system to help

positioning the orientation system with the rest of the machine

• Vibratory bowl height-adjustment system with hand wheel mounted with

numerical reference counter

• Stainless-steel covered vibrating system with controllable variable speed
• Stainless steel vibratory bowl with an out feed chute
• Transfer of the Components from the orientation system to the pickup star wheel through a single punch cylinder distributing

1.Where is it located the manufacturer?
We are located in shanghai china

2.How long is the warranty?
The warranty is one year with easy damage part for free

3.How long it would take to deliver if I decided to purchase?
Because all of our machine will be customized according to your bottles .so the production time is about 30-40 days after get your bottle samples and deposit .?

4.How is the cost of power per day of the machine?
the machine power need about2kw-5kw

5.In case of breakdown the parts are it easily findable and deliver quickly?
Yes.we will provide you one years warranty with any easy damage spare part for free with free shipping .

6.What resources does your company offer in terms of set up and additional support?
Our engineer is avaliable to set up machine and provide technical support for you.beside this .we provide manual book and video support

7.Can i send bottle and cap test ?how much would you need ?can you make a video of this ?
our machine is customized according to the bottle size and cap size .
when machine is ready we will send you test video  with your bottle and caps .bottle we need about 100 for each size .cap we need 200 for each size

8.WHAT ABOUT SPARE PARTS?
We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.

9.HOW DO I TEST THE MACHINE BEFORE SHIPMENT?
We will run the machine for 48 hours .and send you the test video .we can also have remote FAT

10.Do you have certificates?
Yes.we have been certified .we can also provide IQ OQ documentation.
