Inline Filling Capping Monoblock

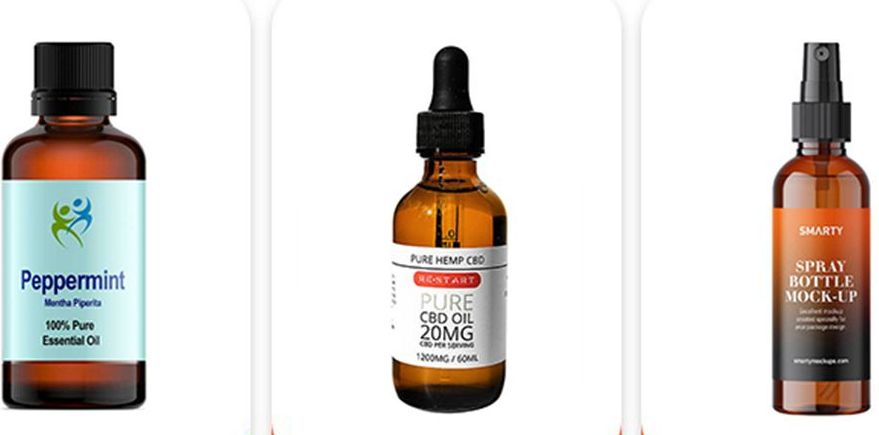

The inline filling capping monoblock is designed to operate at a fast filling speed. It can efficiently fill, screw, and label bottles of various sizes ranging from 5ml to 120ml. This monoblock is suitable for filling various products such as nail polish, e-liquid, essential oils, flavors, dyes, and reagents. It offers flexibility by accommodating different bottle formats, ensuring seamless production processes.
Filling accuracy expectation of:
± 2% (for 0.5 ml to 5 ml fill volume)
± 1% (for 5ml to 15 ml fill volume)
± 0.5% (over 15 ml fill volume)

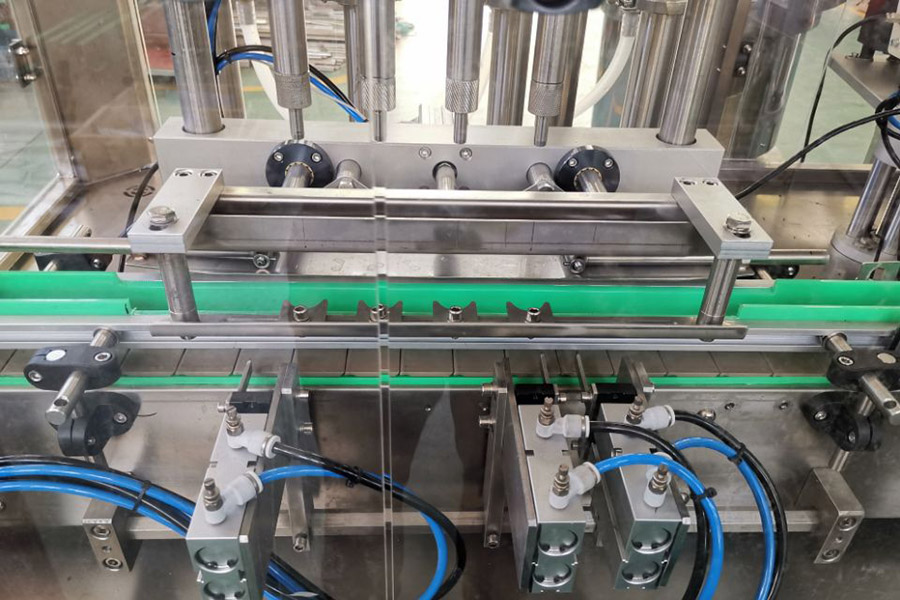

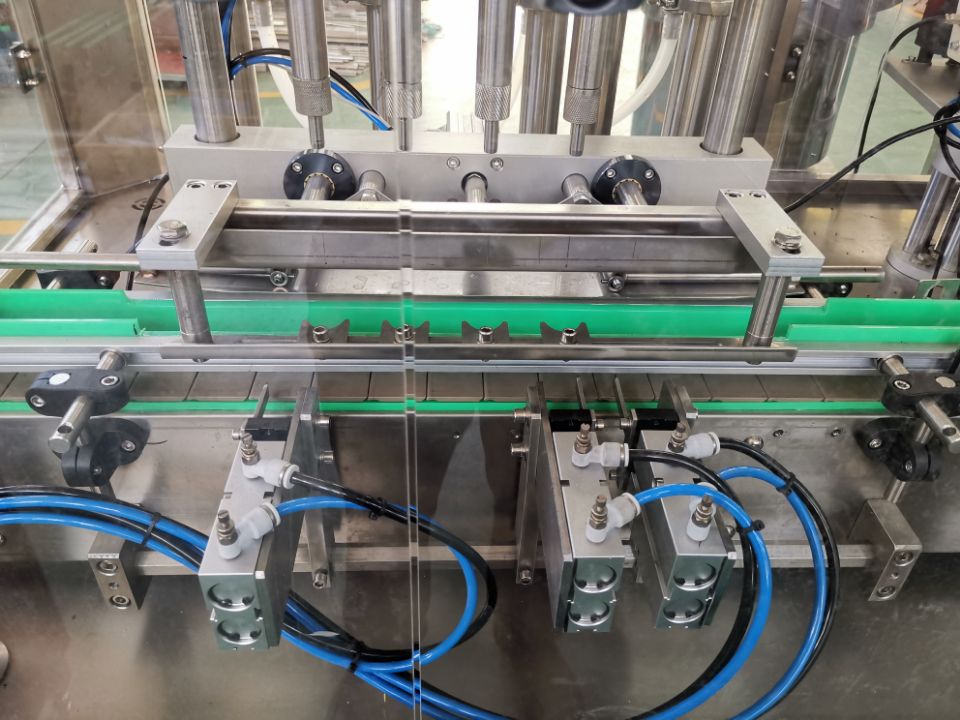

Filling Nozzle
• Stainless steel 316L
• Spring loaded ball check valve
• With re-enforce silicon hoses (food Grade) for product transfer
• Custom attachment system for BottlingLife equipment
• Final design adapted to the product to be fill (To Be Confirm)
Filling Nozzle with Shut Off System
Preventing dripping with viscous & semi viscous products
• Stainless steel 316L
• Pneumatic activated plunger for sealing the nozzle
• Quick disconnect air hose system for wash down
• Dismantling of the nozzle with the usage of any tools
• With re-enforce silicon hoses (food Grade) for product transfer

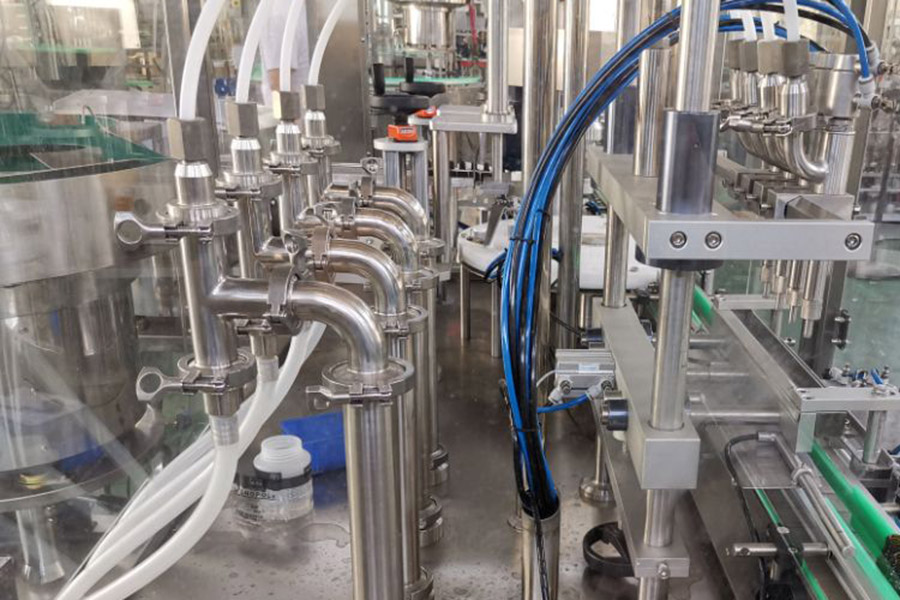

Volumetric Piston for Liquid Products
• Ball check valve in stainless steel 316L
• Stainless steel 316L Volumetric chamber
• Pistons with autoclavable packing, FDA approved material
• “Tri Clamp” Attachment system
• Infeed Ø out feed Ø
• Dismantling of the complete piston without tool
• Servo motor control

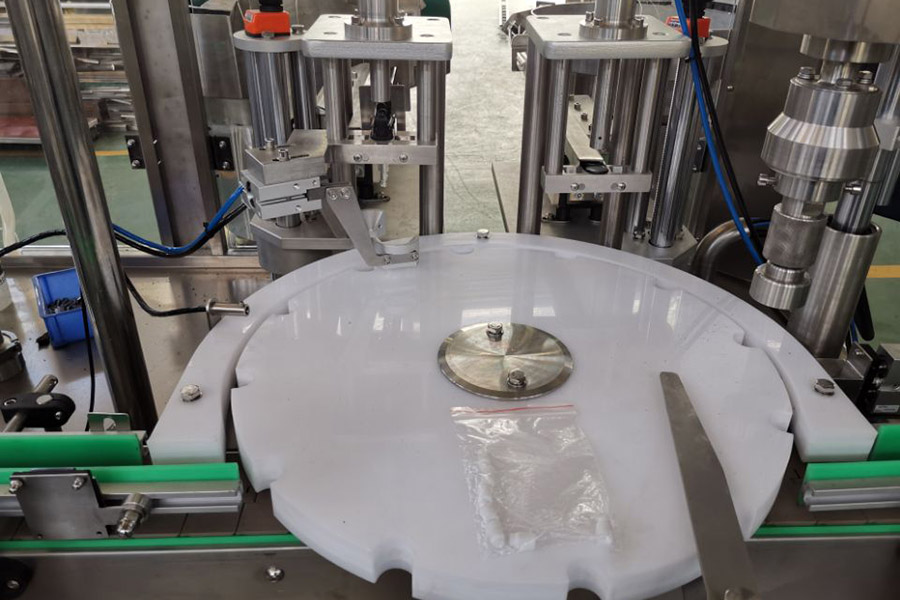

Capping Station (Screw Caps)
One (X 1) transfer star wheel for Capping station
Tube Alignment with ‘’Funnel’’ Device to properly introduce the pipette into the bottle
One (X 1) final independent Magnetic torque control
Torque accuracy 0.2 Nm (± 2 in.-lb.) across a range of 0.56 to 22.4 Nm (5 – 100 in.-lb.)
| Description | Inline Filling Capping Machine |
| Filling nozzles | Customize |
| Capping Head | Customize |
| Filling capacity | 10ml-100ml |
| Filling speed | 60 bpm |
| Air pressure | 0.6Mpa |
| Dimension | 2000mmx1340mmx2100mm |
1.Where is it located the manufacturer?
We are located in shanghai china
2.How long is the warranty?
The warranty is one year with easy damage part for free
3.How long it would take to deliver if I decided to purchase?
Because all of our machine will be customized according to your bottles .so the production time is about 30-40 days after get your bottle samples and deposit .?
4.How is the cost of power per day of the machine?
the machine power need about2kw-5kw
5.In case of breakdown the parts are it easily findable and deliver quickly?
Yes.we will provide you one years warranty with any easy damage spare part for free with free shipping .
6.What resources does your company offer in terms of set up and additional support?
Our engineer is avaliable to set up machine and provide technical support for you.beside this .we provide manual book and video support
7.Can i send bottle and cap test ?how much would you need ?can you make a video of this ?
our machine is customized according to the bottle size and cap size .
when machine is ready we will send you test video with your bottle and caps .bottle we need about 100 for each size .cap we need 200 for each size
8.WHAT ABOUT SPARE PARTS?
We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.
9.HOW DO I TEST THE MACHINE BEFORE SHIPMENT?
We will run the machine for 48 hours .and send you the test video .we can also have remote FAT
10.Do you have certificates?
Yes.we have been certified .we can also provide IQ OQ documentation.
