Soft Tube Filling Sealing Machine
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine.It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
For a comprehensive understanding of our tube filling sealing machine and the diverse range of semi-automatic and automatic machines we offer, we invite you to explore our YouTube channel.
◆Compact Design
◆Driving Parts Fully-closed
◆Pneumatic Tube Washing & Feeding
◆Intelligent Temperature Control and Cooling System
◆Easy to Operate and Adjust
◆316L Stainless Steel Contact Parts to meet GMP Standard
◆Safety Interlock Shutdown when Door is Open
◆Overload Protection Provided
◆Automated Working process from Tube Loading to Finished Products Output
◆Automatic Orientation Effected by Photoelectric Induction
-

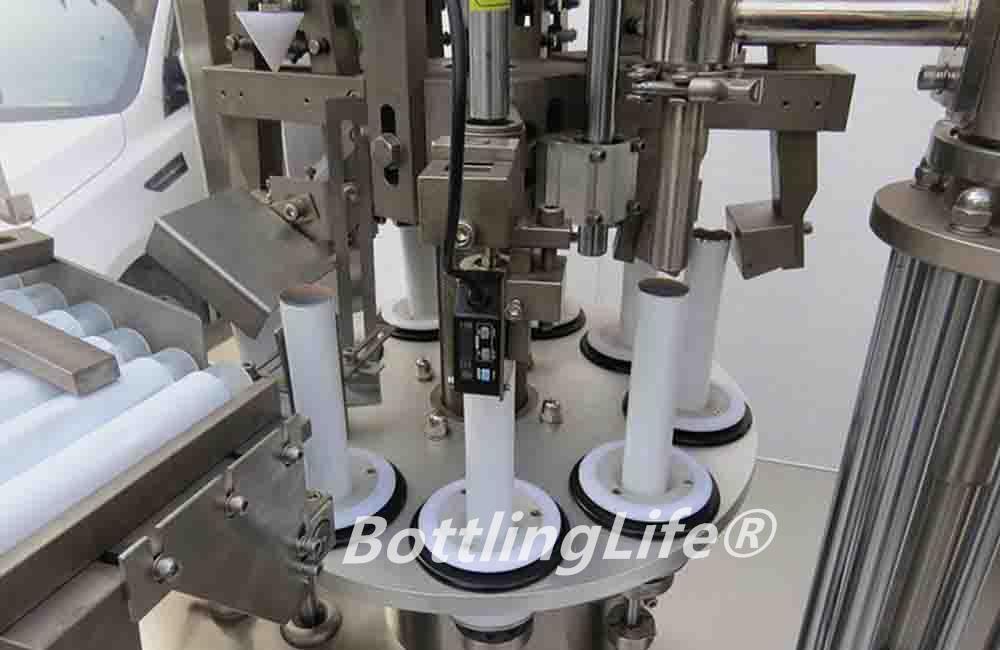

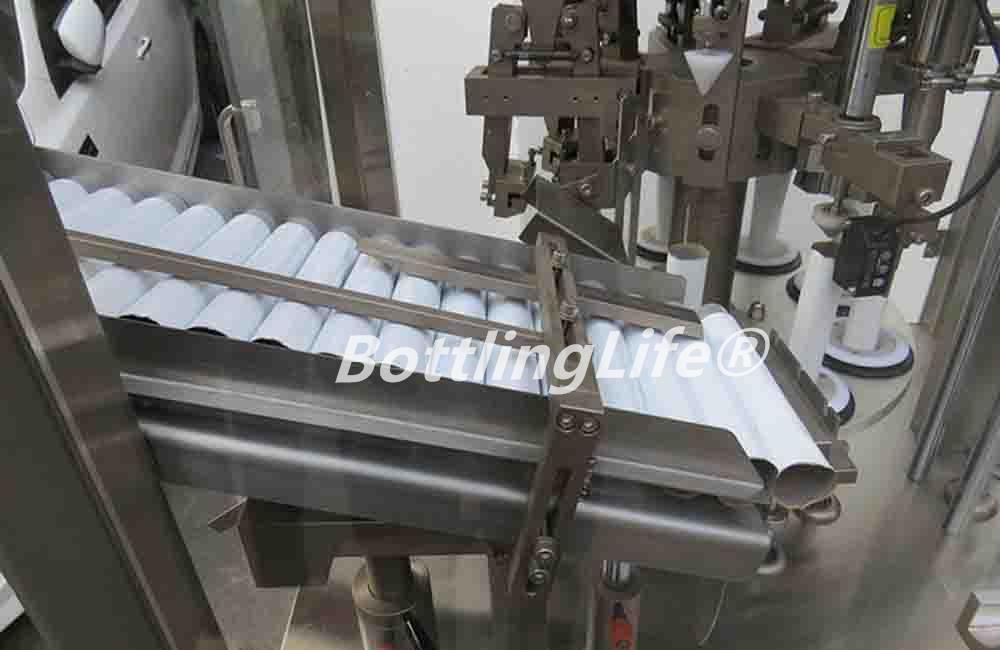

Tube Loading
-

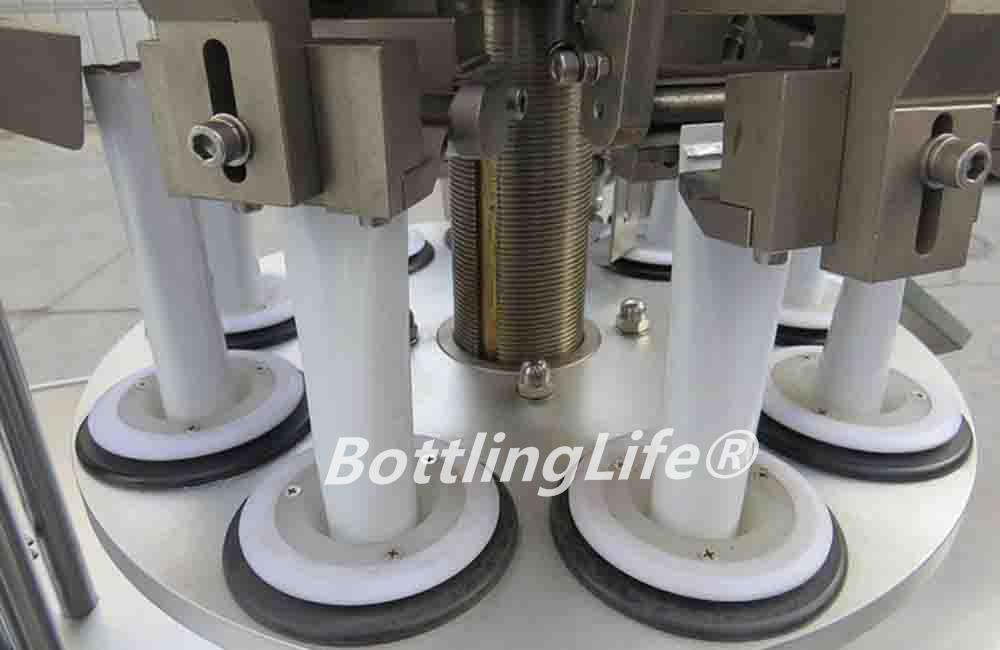

Tube Filling
-

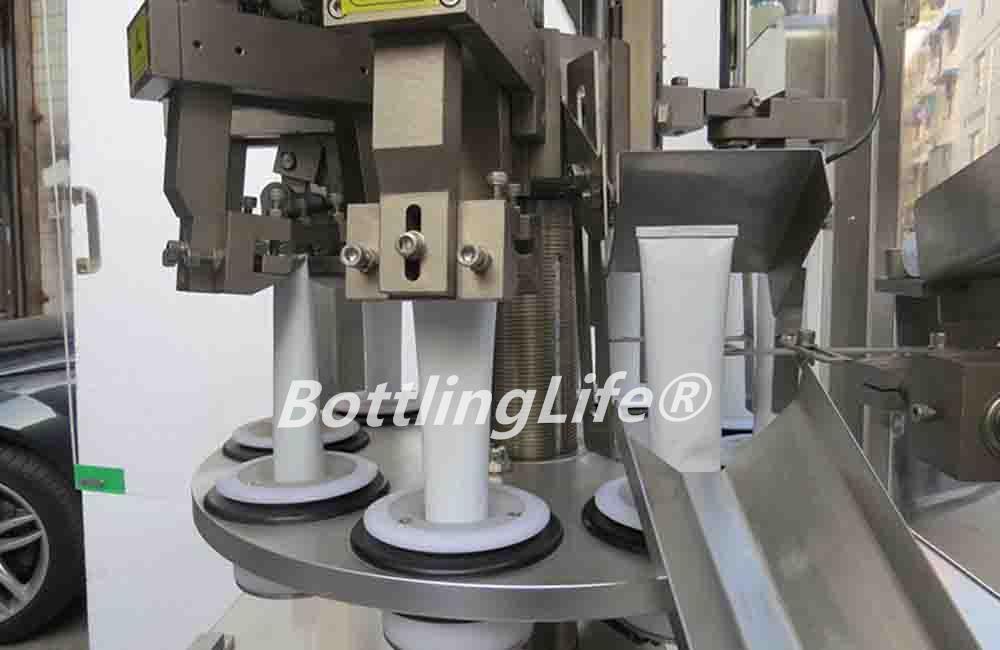

Tube Sealing
-
Tube Cutting
|
Capacity(bag/min) |
20-35 tubes per min |
|
Range of measurement(ml) |
A:6-60ml, B:10-120ml,C:25-250ml,D:50-500ml (Customer made available) |
|
Output power |
2000W |
|
Source voltage |
220V/50-60HZ |
|
Tube material |
Both Plastic tube or plastic aluminum tube |
|
Overall dimensions |
1700*1350*1680mm(LxWxH) |
|
Net weight(kg) |
400kg |
1.Where is it located the manufacturer?
We are located in shanghai china
2.How long is the warranty?
The warranty is one year with easy damage part for free
3.How long it would take to deliver if I decided to purchase?
Because all of our machine will be customized according to your bottles .so the production time is about 30-40 days after get your bottle samples and deposit .?
4.How is the cost of power per day of the machine?
the machine power need about2kw-5kw
5.In case of breakdown the parts are it easily findable and deliver quickly?
Yes.we will provide you one years warranty with any easy damage spare part for free with free shipping .
6.What resources does your company offer in terms of set up and additional support?
Our engineer is avaliable to set up machine and provide technical support for you.beside this .we provide manual book and video support
7.Can i send bottle and cap test ?how much would you need ?can you make a video of this ?
our machine is customized according to the bottle size and cap size .
when machine is ready we will send you test video with your bottle and caps .bottle we need about 100 for each size .cap we need 200 for each size
8.WHAT ABOUT SPARE PARTS?
We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.
9.HOW DO I TEST THE MACHINE BEFORE SHIPMENT?
We will run the machine for 48 hours .and send you the test video .we can also have remote FAT
10.Do you have certificates?
Yes.we have been certified .we can also provide IQ OQ documentation.
